Traces
Search traces by service, route, status, duration, and any span or resource attribute, then open a trace to inspect its spans, logs, and session replay.
The Traces page lists the traces Maple received in the selected time range. Filter the list with sidebar facets or a query, then open a trace to see every span on a waterfall, timeline, or flow view. From a trace you can jump to its logs and to the session replay that produced it.
What data it needs
Traces come from any OpenTelemetry SDK exporting spans over OTLP. The list and facets read these fields:
service.nameresource attribute for Service, anddeployment.environmentandservice.namespacefor Environment and Namespace.- Span name for Root Span.
- Span status (
Ok,Error,Unset) for Has Error and the Status column. http.request.methodandhttp.response.status_code(or their olderhttp.methodandhttp.status_codespellings) for HTTP Method and Status Code.
See OpenTelemetry conventions for the full list of attributes Maple reads.

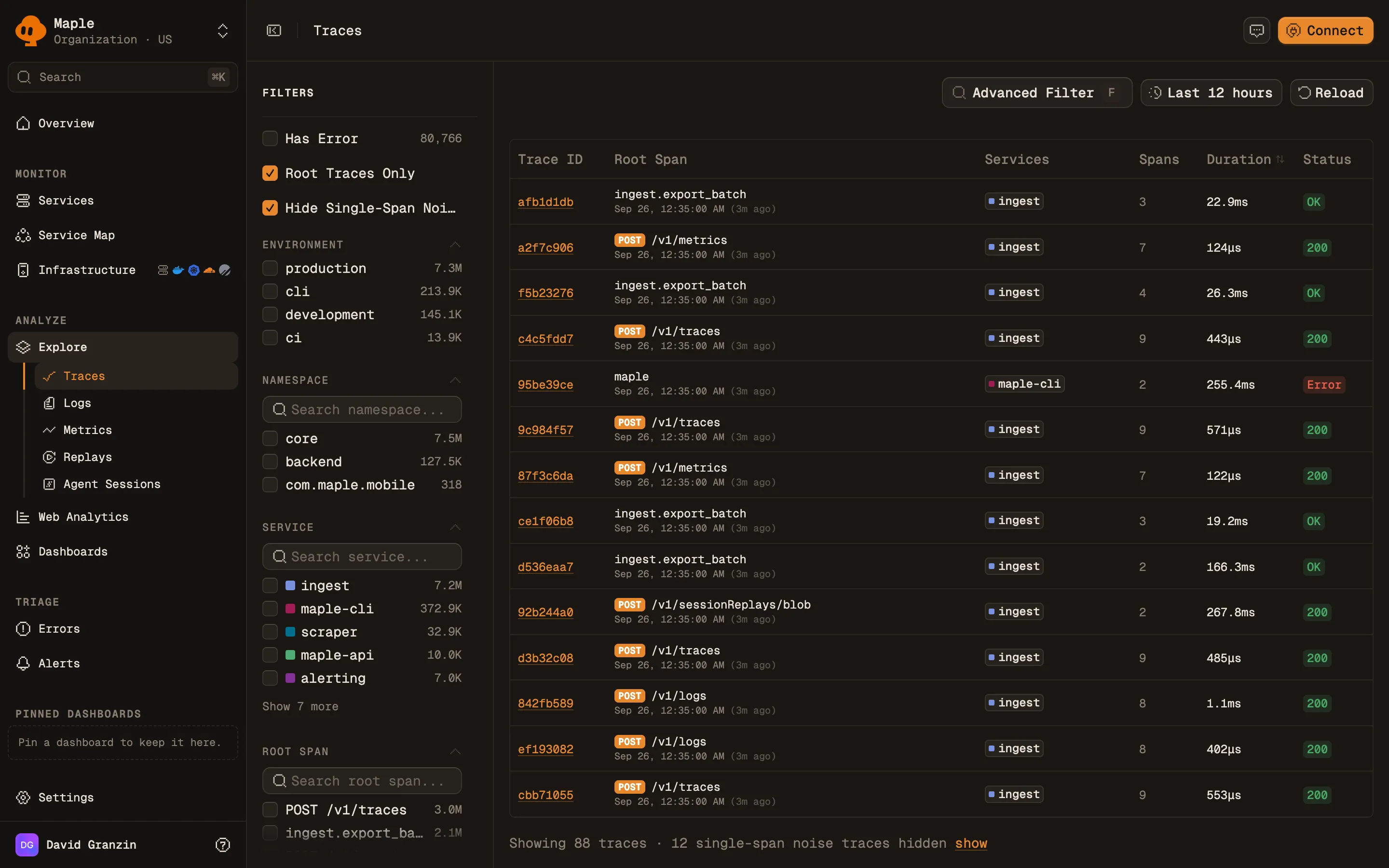

The trace list
The table has these columns: Trace ID, Root Span (with start time), Services, Spans, Duration, and Status. Status shows the HTTP status code when the root span has one, otherwise the span status. Sort by clicking Duration. The default order is newest first. More rows load as you scroll.
The default time range is the last 12 hours. Pick a preset from Last 5 minutes to Last 1 month, or set a custom range.
Click a row to open the trace in a side sheet. Use Previous trace and Next trace (or the K and J keys) to step through the list, and Open trace to go to the full page. Cmd-click or Ctrl-click opens the full page directly.
Filter traces
Sidebar facets
| Facet | What it does |
|---|---|
| Has Error | Only traces with an error span. |
| Root Traces Only | Lists one row per trace, keyed on its entry span (a root span, or a Server or Consumer span). On by default. Turn it off to list individual spans. |
| Hide Single-Span Noise | Hides single-span traces that are not entry points, such as orphaned client spans. On by default, shown while Root Traces Only is on. |
| Environment | Filter by deployment.environment. |
| Namespace | Filter by service.namespace. |
| Service | Filter by service.name. |
| Root Span | Filter by root span name. |
| Duration | A minimum and maximum duration range. |
| HTTP Method | Filter by request method. |
| Status Code | Filter by HTTP response status code. |
Every value facet can include or exclude a value.
Query syntax
Click Advanced Filter (or press F) to write a query. Press Ctrl+Space for autocomplete and Cmd+Enter to apply.
service.name = "checkout" AND attr.http.route != "/health"Join clauses with AND. Supported keys and operators:
| Key | Operators |
|---|---|
service.name, span.name, deployment.environment, service.namespace | =, !=, contains |
http.method, http.status_code | =, != |
has_error, root_only, min_duration_ms, max_duration_ms | = |
attr.<key> (span attribute), resource.<key> (resource attribute) | =, !=, contains, !contains, exists, !exists, >, >=, <, <= |
You can use up to 5 filters per attribute map (span or resource). The dialog shows a warning for any clause the list cannot apply.
Inspect a trace
The trace page header shows the environment, the commit SHA (from vcs.ref.head.revision), the error state, and the HTTP status. If the trace produced product events, they appear in a Product events panel.

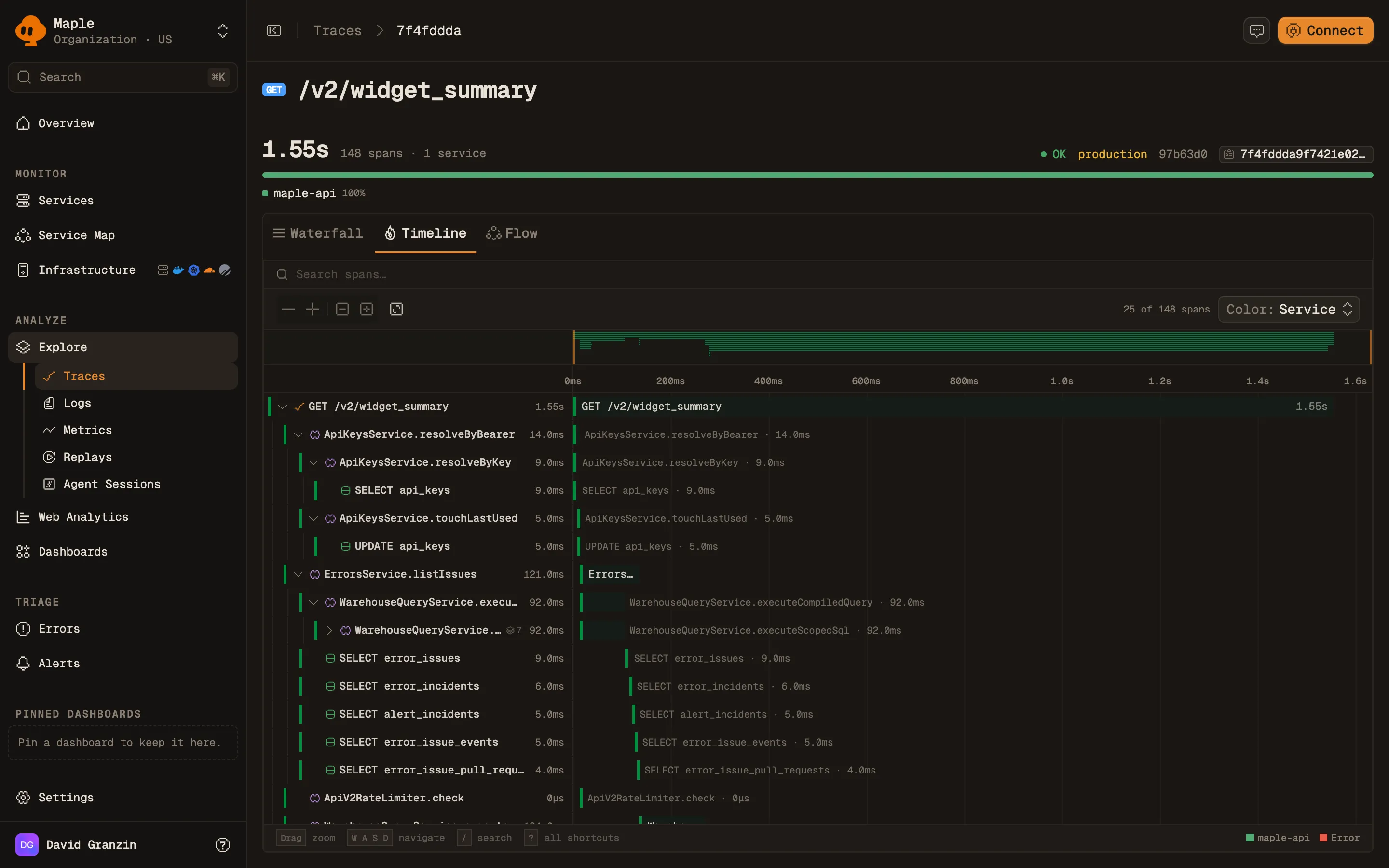

Three views show the spans:
- Timeline (default): spans on a time axis, with Search spans… and a color-by picker.
- Waterfall: the span tree with a duration bar per span.
- Flow: spans as a graph of nodes and edges, with repeated child spans combined into one card with a count.
Click a span to open the span panel. Press Esc to close it. The selected span is kept in the URL, so you can share a link to it.
The span panel shows the duration and status, and an error section when the status is Error. It has these tabs:
- Details: Start Time, Span ID, Parent Span ID, then Span Attributes and Resource Attributes. Each attribute row has Filter by and Exclude actions that open the trace list with that attribute filter applied.
- Logs: logs emitted inside this span. Click one to open its detail.
- Infrastructure: host, container, or Kubernetes details, shown when the span carries those resource attributes.
Jump to logs and replays
- View Logs in the trace header opens the Logs page scoped to the trace ID. The button shows a count and appears only when the trace has logs. The time window covers the trace duration plus 5 minutes on either side.
- View Session Replay opens the replay of the browser session that made the request. It appears when a recorded session is linked to this trace ID by the browser SDK.
Query traces from an assistant
The MCP server exposes the same data:
search_traces: filter by service, error, duration, HTTP method, span name, or one attribute key and value.inspect_trace: the span tree and logs for one trace ID.inspect_span: every attribute of one span.find_slow_traces: the slowest traces with p50 and p95 context.
Troubleshooting
- “No traces yet”. Maple has never received a span for this organization. Configure an OpenTelemetry SDK with your ingest key and the ingest endpoint. See Instrumentation.
- “No traces in this time range”. Maple has data, just not in this window. Click Widen time range.
- “No traces match these filters”. Your exclusions removed everything. Click Clear filters.
- A trace you expect is missing. Root Traces Only and Hide Single-Span Noise are on by default. Turn off Hide Single-Span Noise to see single-span traces, or Root Traces Only to search individual spans.
- “Trace not found”. The trace has expired past your retention or has not been ingested yet.
Next steps
- Logs: search log lines and jump back to their traces.
- Services: latency, throughput, and errors per service.
- OpenTelemetry conventions: attributes that power filters and badges.
